RefleX T222 UV Chambers
For ultrapure water disinfection
RefleX T222 UV Disinfection Chambers
An essential component in advanced oxidation processes and water disinfection, RefleX UV Chambers use patented technology to reflect 99.8% of 254 nm UV generated back into the chamber flow.
With a 75% smaller footprint than standard UV systems and 22” high-output lamps, RefleX T222 UV Chambers provide highly efficient performance with the lowest cost service schedule of any low or medium pressure UV system available.
Take command of more in less space.
RefleX Controllers provide the information you need at a glance – with the ability to control up to four treatment chambers independently from a simple menu.
-
Compact footprint
-
Vertical or horizontal mount
-
Fewer lamps
-
Up to 75% less energy use
-
120V or 230V single phase power
-
No flow, no problem
-
Real-time dosimetry
-
NSF 50 and NSF 61 certification
-
No-tool lamp change
-
TUV safety certified
Control up to four chambers
from a tidy 8X9X4” footprint.
Flow Rate:
35 (8) gpm (m3/hr.)
95% UVT @ 30mJ/cm2^
Lamps:
One high-output
amalgam lamp
Power:
240 watts with
control box
Get the specs
Everything you need to know
Let us help size
your system
solution
Start smart
Industry Application
Requirements
Get them all by the numbers
Maximum UV Penetration
The NeoTech T222™ provides users an unparalleled level of engineering sophistication by maximizing UV distribution in a patented 99% reflective chamber.
This unique technical advantage also reduces the number of lamps and power requirements by up to 90% compared to standard UV system.
Minimal Maintenance
The service and maintenance requirements for the NeoTech T222™ are limited to three basic requirements:
Lamp Replacement:
No Tools Required
UV Monitor:
May be changed with a single screwdriver while the system is operating
Cleaning:
May be cleaned as needed in a CIP loop or manually brush

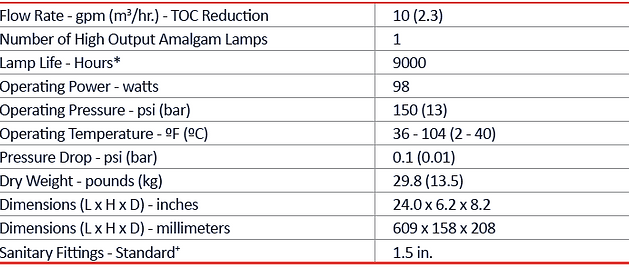

Specifications:
^ At rated pressure drop.
* Lamp life is based on a maximum of one on-off cycle per day and room temperature water.
+ All units come standard with sanitary tri -clamp fittings for improved reliability, sanitation, and ease of
installation. Alternative connections are available upon request.
Unparalleled Efficiency.
The NeoTech T222™ boasts the smallest footprint in its class. With as few as one-tenth as many bulbs compared to standard UV systems, it has the lowest operating cost and maintenance schedule in the field.
Options and Spares:
Higher reflectivity for higher transmissivity.
The UV transmissivity (UVT) of the treated water, combined with the flow rate through the unit, determine the UV dosage applied to the water. Parti cles in water typically absorb or refl ect UV light which affects the water's UV transmissivity. NeoTech Aqua’s units are rated based on a UVT of 95%. The above graph illustrates the appropriate rating for the T222 based on varying UVT levels. The NeoTech Aqua Solutions technical team provides complimentary UVT analysis on customer-supplied water samples to ensure proper UV equipment sizing. Let us help >
